Installation instructions MDESIGN 2024



General / Installation

What system requirements do I need for the current MDESIGN version?

System requirements current version MDESIGN 2022:

system (server, clients):

  • Windows-compatible PC
  • Screen resolution: at least 1920 x 1080 pixels
  • Hard disk capacity: max. 4 GB on the server or local workstation; max. 100 MB on the client
  • Memory: at least 8 GByte
  • Workstation operating system: Windows 10, Windows 11; 64-bit systems
  • Server operating systems: Windows Server 2019, 2016; 64-bit systems

Installing MDESIGN 2022 alongside an existing 32-bit Microsoft Office installation can damage your Microsoft Office installation. Migrate Microsoft Office to a 64-bit version before installing MDESIGN 2022 or select a different computer for the deployment of MDESIGN 2022.

Firewall settings:

  • Release of the applications lmgrd.exe and TEDATA64.exe via the Windows Firewall.
  • The ports for incoming and outgoing traffic must be enabled for the hardware firewall.
  • The vendor port is 28064.
  • The following URL must be activated for working with MDESIGN 2022 in the firewall on the customer side:
    • Für die MDESIGN Updates
    • Für Herstellerinformationen und Content Seiten
    • Für Berechnungsinformationen und Content
    • Hotline Anfragen Online
    • Kundenforum
    • Kontent
    • Modulaktualität


Operating environments such as Citrix, virtual machines etc. may be limited in functionality depending on Windows compatibility. Systems such as UNIX can be used for the application server as a "share" (e.g. Samba). The system administrator must ensure that the corresponding directories are released and used as a share (e.g. Samba) and that the MDESIGN files can be addressed by the clients.

MDESIGN also works fully if the Windows operating system is running on a virtual machine. However, the prerequisite for this is that the virtualization corresponds 1:1 to the Windows system.

Can MDESIGN 2022 be installed in parallel with other MDESIGN versions?

MDESIGN 2022 is a new and independent version of the MDESIGN calculation software. MDESIGN 2022 can be installed in parallel with all other previous MDESIGN versions. Previous versions do not need to be uninstalled.

How can files from an older MDESIGN version be opened in a newer version?

Older files can also be used in newer MDESIGN versions.

Why is the HostID wizard not available in MDESIGN 2022 (grayed out)?

The HostID wizard is only available in MDESIGN 2022 if MDESIGN was started via the context menu (right mouse button) with the "Run as administrator" command.

How do I create the "HostID file" to request license files?

The licenses can only be created if the HostID file has been sent to us in full and in the correct format. Please note the following instructions for creating the HostID file:

  1. Start MDESIGN from the context menu with "Run as administrator".
  2. Start the HostID wizard in MDESIGN via the "Help" tab and "HostID wizard" in the menu bar.
  3. Fill in the fields (incl. your customer number).
  4. Save this data as a HostID file in a directory of your choice.
  5. Then send the saved HostID file as an e-mail attachment directly to
  6. After successful authorization, the license files will be sent to you by e-mail within two working days.
  7. After inserting the license files in the corresponding folder (see manual) and restarting the computer, MDESIGN is activated and all licensed calculation modules can be used.

Note: If you are using a license server, you will find the HostID wizard (HostIDsAssistent.exe) in the folder C:\Program Files\FLEXlm64\MDESIGN.

Why can't the license files be saved in the folder mentioned?

Saving files in sensitive folders may be blocked by Windows.

First save the license files to the desktop or another folder. Right-click on all four files to open the "Properties". In the "General" tab, under Security ("The file originates from another computer. Access may have been blocked for security reasons.") and check "Allow". You should now be able to copy the files to the license folder.

What does the error message "General error in the CREATETABLE function" mean?

The error message indicates that the user lacks rights.

For the client-server installation of MDESIGN 2022, it is necessary that any number of clients have read permission for the entire MDESIGN directory "C:\Program Files\MDESIGN" and write permission for the directory "C:\ProgramData\MDESIGN\MDESIGN explorer 19\Common Files".

For the client-server installation of MDESIGN 2020, it is necessary that any number of clients have read permission for the entire MDESIGN directory "C:\Program Files (x86)\MDESIGN" and write permission for the directory "C:\ProgramData\MDESIGN\MDESIGN explorer 18\Common Files".

For the client-server installation of MDESIGN 2018, it is necessary that any number of clients have read permission for the entire MDESIGN directory "C:\Program Files (x86)\MDESIGN" and write permission for the directory "C:\ProgramData\MDESIGN\MDESIGN explorer 17\Common Files".

For the client-server installation of MDESIGN 2016, it is necessary that any number of clients have read permission for the entire MDESIGN directory "C:\Program Files (x86)\MDESIGN" and write permission for the subdirectory "C:\Program Files (x86)\MDESIGN\MDESIGN explorer 2016\Common files".

Why does MDESIGN not offer the installation of FLEXlm?

MDESIGN only offers a FLEXlm installation if no existing FLEXlm installation for MDESIGN is found by the system. Either FLEXlm is installed during the MDESIGN installation or a separate FLEXlm installation is offered. The FLEXlm installation is not offered if one of the following points applies: - There is a valid FLEXlm key "HKLM/Software/FLEXlm License Manager/MDESIGN License Manager" with the correct values in the Windows registry (see MDESIGN user manual Appendix 1). Depending on the system, the path to FLEXlm may differ. - A "FLEXlm\MDESIGN" folder is present in your system and contains at least the two service files "lmgrd.exe" and "tedata.exe".

When you start MDESIGN, you receive the error message: Code-15 Cannot connect to license server system.

If MDESIGN has been installed correctly, please restart the "MDESIGN License Manager" service. This can be found under "Control Panel" / "Administration" / "Services". By right-clicking on the "MDESIGN License Manager" service, you can restart the service in the context menu in the "All tasks" area. Alternatively, you can also use the "mdstart.exe" tool for this. You can download this from the link The "MDESIGN License Manager" service is automatically restarted by executing (double-clicking) the "mdstart.exe" file. If you are still unable to use MDESIGN after this, please send us the support info from your computer. Start MDESIGN from the context menu with "Run as administrator". You will find the button in MDESIGN under the "Tools" tab in the ribbon on the far right (Export Support Info).

How can I back up the user databases before an MDESIGN update within the same year version 2022?

The user databases are stored in the "Common Files" folder. In a standard installation, the path is: C:\ProgramData\MDESIGN\MDESIGN explorer 19\Common files. The user databases "db19user.mdb", "db19userlocal.mdb", "dbdc19user.mdb" and "dbespresso19user.mdb" can be saved here and added again after an update.

The license files are no longer valid because MDESIGN has been installed on a new server/computer.

In order to provide you with new license files, we require a completed license transfer form from you. This can be requested informally via our hotline ( Please then send us the completed license transfer form by fax (+49 234 30703-69) or by e-mail ( We also need the HostID of the new server or computer, which you can send us separately by e-mail. You will then receive the new license files by e-mail. Note: The purchase of the MDESIGN student edition includes a one-time license; an update must be purchased for new licenses or license transfers.

What is the difference between a new MDESIGN build and a module update?

From time to time, a new build with improvements and new features will be made available to you as a service customer in the customer forum. You can use this build to update your existing MDESIGN version to the latest version. (Prerequisite: You are using the current MDESIGN version; currently: MDESIGN 2022)

Before this build is released, you can download improvements and new features, which we will make available to you in advance, directly from MDESIGN as a customer with a service contract.

The update function can be found in the menu bar under "Help" > "Updates" > "Available updates".

If you have checked the "Check for updates at startup" and "Always notify me of the latest module versions" boxes in the MDESIGN options, you will always be informed when an update is available for this module when you use it.

Information on this can be found in the operating manual.

Where does MDESIGN 2022 save the settings and databases?

MDESIGN saves your settings in the "ProgramData" folder. This ensures that all user accounts on a PC can access the files and settings.

The databases for MDESIGN are integrated in the folder "C:\ProgramData\MDESIGN\MDESIGN explorer 19\Common Files".

Why must the computer device name in connection with an MDESIGN installation not contain any special characters or umlauts?

The MDESIGN software includes a licensing system from Flexera. Among other things, the device name of the computer or server is used for licensing. The Flexera version currently in use works with standards that do not include coding for special characters and umlauts. To avoid errors during the installation and licensing of MDESIGN, special characters and umlauts should therefore not be used in the device name.

What does the error message "Please register ActiveX control before using this plugin" mean for MDESIGN multibolt?

The error message indicates that the registration of the 3D assistant failed during the MDESIGN client installation. This is often caused by the client not being able to access the MDESIGN folder on the server.

To reinstall the 3D assistant, please carry out the following steps:

1. log on to the client as an administrator or domain administrator.

2. make sure that you have an existing connection to the server and to the "MDESIGN" folder.

3. adjust the "Register.bat" file (to be found under: \Server\MDESIGN\MDESIGN multibolt 2022\ Register.bat) as follows:

- Line 1: "Path to regasm.exe" /register "Path to mdmultibolt3d.dll" /tlb /codebase (The path name "Path to mdmultibolt3d.dll" should contain the server or IP address: \Servername\MDESIGN\MDESIGN multibolt 2022\mdmultibolt3d.dll)

- Line 2: pause

4. save your changes.

5. run the file "as administrator".

6. the Windows console displays the following message after successful execution:

"Assembly exported to '\Servername\MDESIGN\MDESIGN multibolt 2022\mdmultibolt3d.tlb', and the type library was registered successfully".

Why are modules grayed out despite existing licenses?

This can occur if the configuration of MDESIGN has not yet been updated. Click on "Update configuration" in the "Tools" tab, which will restart and reconfigure MDESIGN.

Use MDESIGN 2022 together with MS Office 32bit

As a modern 64bit version, MDESIGN 2022 does not run in conjunction with the MS Access Database Engine 32bit. The MS Access Database Engine 64bit is required for MDESIGN 2022.

This results in collisions between MDESIGN 2022 and MS Office 32bit.

According to Microsoft, 32-bit and 64-bit Office products are not compatible with each other.

We recommend the following workaround for using MS Office 32bit and MDESIGN 2022 together:

  1. Install MDESIGN 2022
  2. Modify registry entry (delete entry "mso.dll") or
  3. Modification of the registration via group policy / login script

Note: If the entry "mso.dll" is not deleted from the registry, the message "Reconfiguring" appears every time an MS Office application is started!


Manual modification of the registry:

  1. Open the Registry Editor ("regedit" in the Windows search field of the Start menu, then select "Registry Editor")
  2. Delete or rename the entry "mso.dll" in the following keys (if available):
    1. HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office.0\Common\FilesPaths
    2. HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office.0\Common\FilesPaths

Note: This workaround is only a temporary solution if an update for MS Office or its components is subsequently installed via Windows Updates. A permanent solution to the problem can be achieved if MDESIGN 2022 is installed on a computer with Microsoft Office 64bit or if a registry change is made in the logon script (see "Modification of the registry via group policy / logon script").


Automatic modification of the registry

  1. Download and unzip the following file. Then start the following application as administrator: fix_officex86_md2022.exe(

This program automatically carries out the steps described in the section "Manually modifying the registry".


Modification of the registration via group policy / login script

A permanently functioning solution is an entry to correct the registry entries described above in the MDESIGN user login script:

@echo off

reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office.0\Common\FilesPaths /v mso.dll /f

reg delete HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office.0\Common\FilesPaths /v mso.dll /f

You can find more information on editing the registry here: reg delete | Microsoft Learn

Application / Calculation

Where can I find the result diagrams of a calculation?

The result diagrams are displayed in the graphics help window. Different diagrams can be selected for display in the window's selection menu. The result diagrams can also be transferred to the documentation.

How can I write my own screw dimensions into the database?

In the "MDESIGN Control" > "Dimensions, screw connections" area, screws can be selected from the MDESIGN database or from the user database. You can make your own entries under "Own specification" and save them in the user database.

What do the load cases H and HZ mean when entering the permissible shear stress, the permissible tensile stress and the permissible hole friction pressure in the moment-loaded bolted joints module?

The load H contains the sum of the main loads, including, for example, permanent loads and the live load. The load case HZ describes the sum of the main and additional loads. Additional loads are loads that are caused by heat or wind, for example, or that only act temporarily on the bolted connection.

Why are not all MDESIGN materials available in the shaft calculation module?

The module for shaft calculation is based on DIN 743. This DIN standard only contains a specific set of materials. Additional materials can be added for the shaft calculation via the user database.

Why does the multi-bolt calculation ask for a "torque at the circumference of the bolted joint"?

The multi-bolt calculation is used exclusively to calculate the stability of a multi-bolt connection against a torque on the circumference of the bolt connection. All other loads must be reduced to the individual bolts so that the bolts can be calculated as single-bolt connections.

Why does the required minimum screw-in depth automatically increase if a screw with a higher strength class is selected?

The determination of the required minimum screw-in depth is independent of the load on the screw. The standard calculates the minimum screw-in depth on the assumption that the screw connection does not fail due to shearing of the thread in the event of overloading, but rather due to the screw breaking off. This means that the shear strength of the thread must always be higher than the tensile strength of the screw. So if the strength class of the screw is increased, the shear strength of the thread must also increase and therefore also the screw-in depth.

Why is it not possible to enter threshold strengths in the shaft calculation, even for a purely pulsating load?

DIN 743, on which the shaft calculation is based, works exclusively with the alternating strength values of the materials. For this reason, threshold strength values cannot be entered even for a purely pulsating load. The threshold strength values of the material are of course still taken into account in the case of pulsating loads.

What is the operating torque that is queried on the input page of the screw calculation?

The operating torque is the bending moment on the screw. According to the VDI, only one bending moment is permissible. If there are several bending moments, these must be added vectorially.

Why is the sealing surface queried in the bolt calculation for an operating torque MB > 0, although the internal pressure to be sealed should not be taken into account?

As there is a risk of gaping at an operating torque MB > 0, the minimum clamping force FKA is calculated at the lift-off limit of the two connected parts. This force ensures that the connecting surfaces of the two connected parts lie securely on top of each other even at an operating torque MB > 0. The sealing surface is required to calculate the force FKA.

How can I enter user-defined materials in MDESIGN?

There are various material databases in which values can be entered. All tables are contained in db19user, but should NOT be changed there directly (e.g. via Access).
Different databases are available, as various material parameters are required for different calculations.

1 MDESIGN technology
Material characteristics - general material database: this contains materials for all modules that use materials according to FKM (not for screw calculation and shaft calculation), enter the materials that you require for calculations according to the FKM guideline here; materials for screw or shaft calculation must be entered in the corresponding material databases.
MDESIGN technology: Open the "MDESIGN technology" calculation library in MDESIGN. Here you will find the "Material characteristics" module or table.

2 MDESIGN control

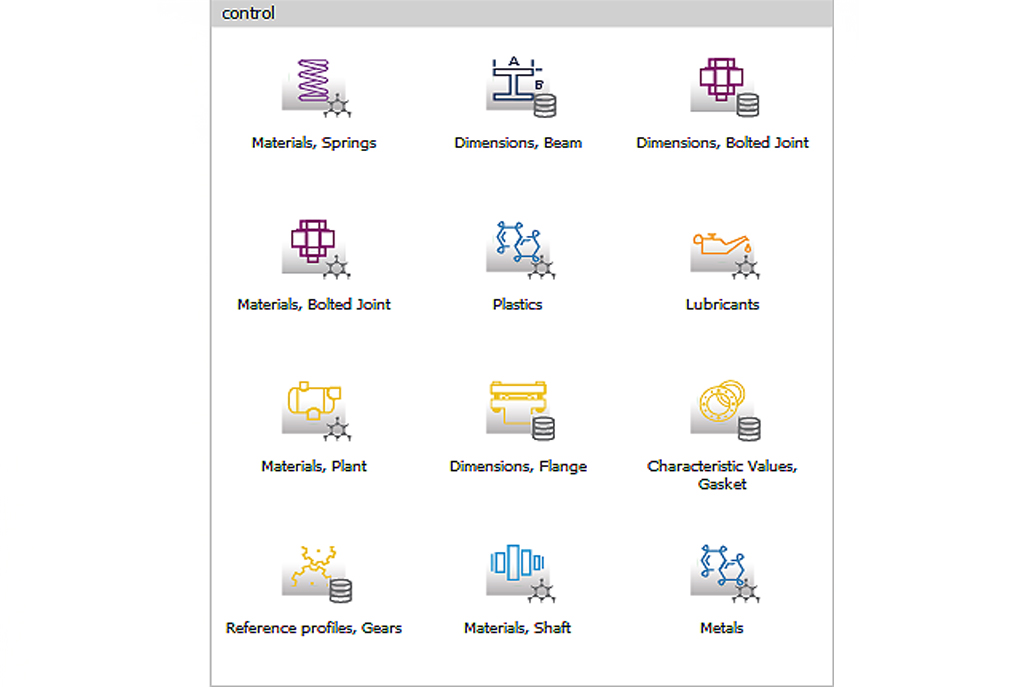

The following material databases are available in "MDESIGN control":

  • Materials, shaft - material database: this contains materials for the shaft calculation, please note that you cannot use your own materials for the shaft calculation in the shaft calculation basis. Own materials in the material database "Shaft calculation material database" can only be used in the MDESIGN shaft module.
  • Materials, bolted connections - VDI 2230: this contains materials for the calculation of bolts.

If you also need the same material for other calculations, please also enter it in the general material database in MDESIGN technology.

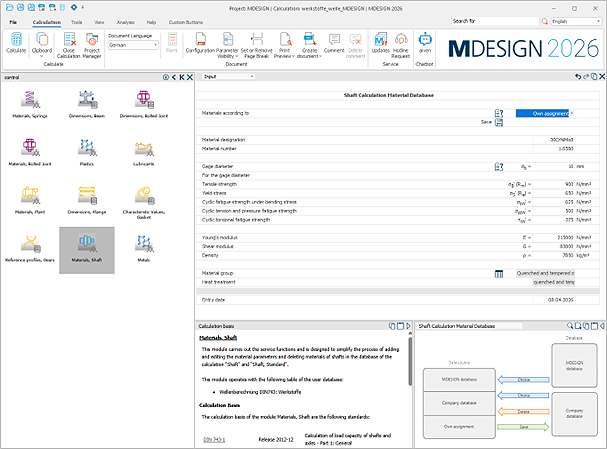

Click on the material database that you want to expand. In the "Materials by" field, select the option "Own specification", enter all the values for the material you want to add and save.
The material is then added to the material database and is available for calculations.

Please note: The central user databases in a network can only be changed with the appropriate write permissions (see chapter "User administration" in the MDESIGN manual). If you do not have write access to the central material databases, a local copy of the databases will be created on your computer. All changes to the databases are only applied to your local copy.
